Shooting track controller and track equipment (2009-10-22)

Competition event in Riihimäki, Finland, January 2003

The designer of the target hard ware, Mr Paavilainen, in the middle.

The controller has three programs:
-    Rapid Fire Pistol - turning target (10 sec, 8 sec, 6 sec and 4 sec)
-    Rapid Fire Pistol (150 sec, 20 sec and 10 sec, additional 8 sec and 6 sec)
-    Air Pistol (5 min)
-    Rapid Air Pistol (5 x 7+3 sec)

View Rapid Fire Pistol 4 sec on PHA trac Tampere.

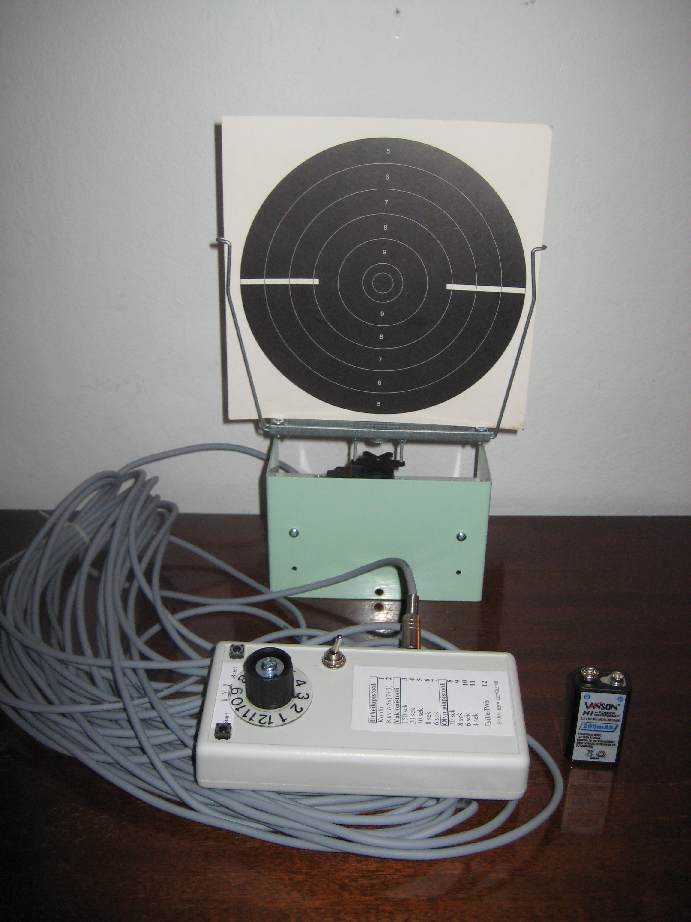

Single Turning Unit

The single turning unit is good for all air pistol shooting with a semi automatic air pistol.

The controller cable ie 14 m and is connected to the turning unit and the controller unit. Power adapter is connected to the turning unit. You'll need a bullet collector behind the target. You can also use e piece ot carpet (green on picture) to muffle the spellet ound.

Rapid Fire Pistol Track

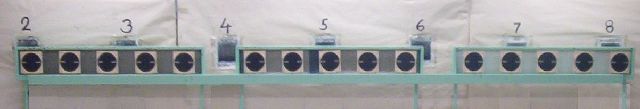

The picture below shows a group of three target groups used in a competition in Riihimäki, Finland January 2003:

A rapid fire pistol track consist of a five target group and a turning motor, pellet collector, 2 wall hooks and 2 legs. In a fixed installation the wall hooks are used, the legs are for movable installations. All parts fit into the pellet collector for transportation. Several target groups can be connected together and be run by a singel motor. One controller can control several target groups. See the track in action, picture on the top.

Load here a "dry-training target" for rapid fire pistol 5-targets.

Digital Controller for air pistol tracks
(See picture above, Single Turning Unit)

The controller has three programs:
-    Rapid Fire Pistol - turning target (10 sec, 8 sec, 6 sec and 4 sec)
-    Rapid Fire Pistol (150 sec, 20 sec and 10 sec, additional 8 sec and 6 sec)
-    Air Pistol (5 min)
-    Rapid Air Pistol (5 x 7+3 sec)

Power supply 6 to 12 VDC. A good 9V battery can run the track up to 500 shots with acceptable target turning speeds. You also can use a 12VDC 1A power adapter.

User guide (PDF): PIR10 userguide.pdf

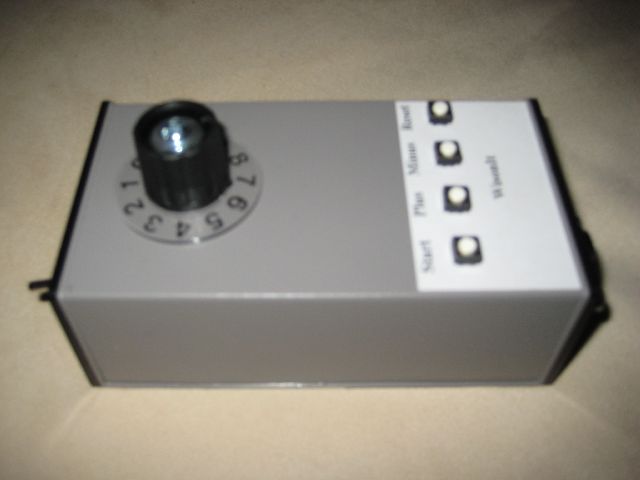

Digital Controller for air rifle tracks

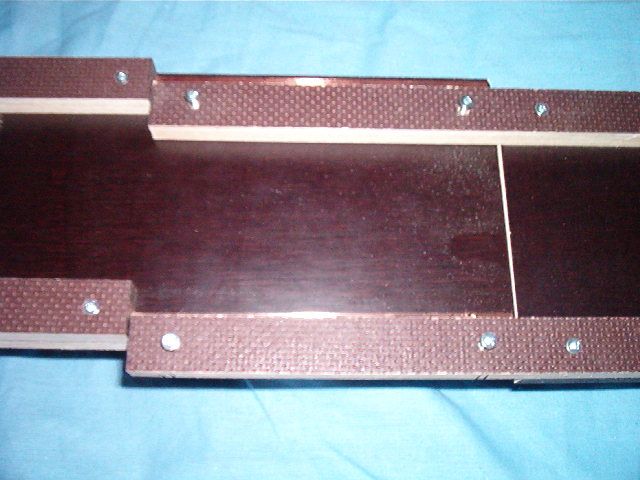

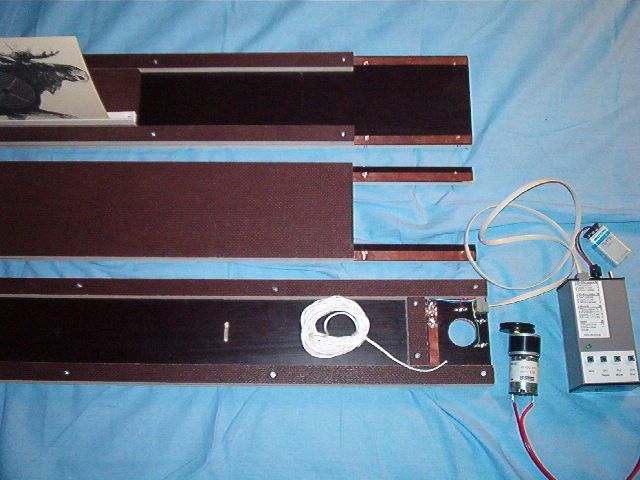

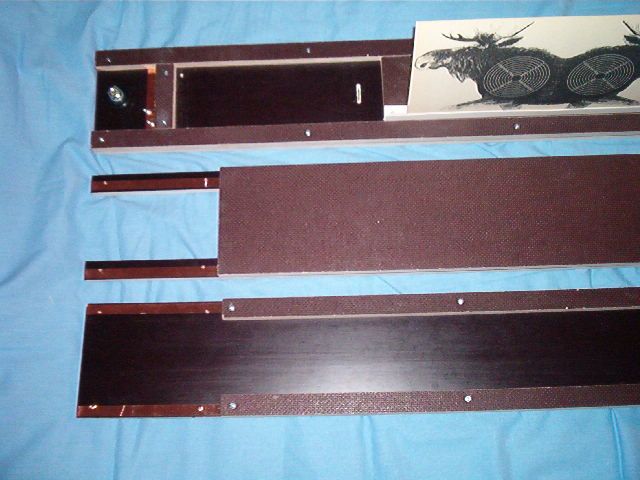

Rifle track parts



The controller has three programs:
-    Rapid Air Rifle - Fast 2.5 sec run
-    Rapid Air Rifle - Slow 5 sec run
-    Rapid Air Rifle - Mixed random 2.5 and 5 sec run

The running speed is digitally adjustable separately for both running directions and for both programs (2.5 sec and 5 sec). Both rifle programs have three versions:
-    Continuous run with 2 sec wait between runs
-    Automatic run after 15 sec wait for loading and showing the target while waiting
-    Manual (press button) run after wait for loading and showing the target while waiting

Instruction to build the track will be available later or by eMail.

Power supply 12VDC / 1A, depending on the DC motor used.

User guide (PDF): (currently available only in finnish, sorry)

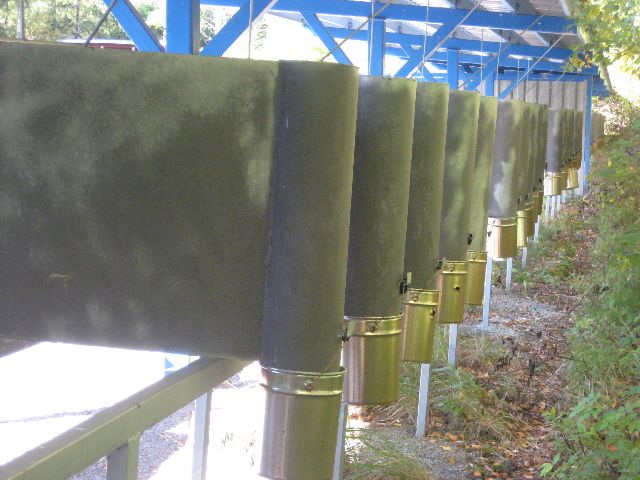

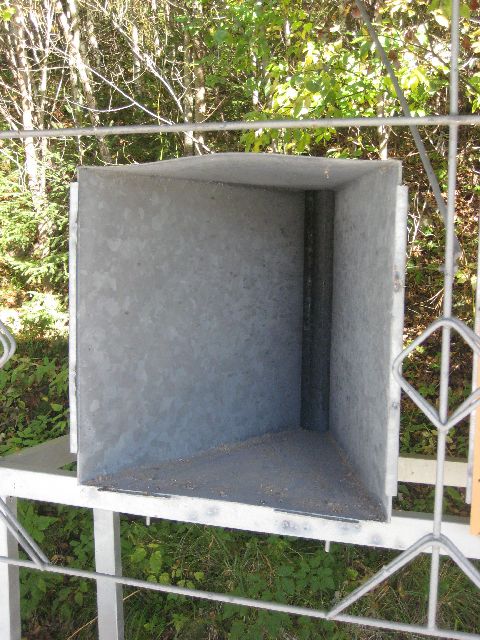

Bullet trap

Bullet trap is useful on shooting tracks.
